LDAP: Introduction to OpenLDAP

OpenLDAP is an open-source suite of LDAP (Lightweight Directory Access Protocol) application  and development tools.  It is a key tool to realize single sign on operation in network environment.

Installation

These packages are required for OpenLDAP to function properly:

1. yum install openldap-servers
2. yum install openldap-clients

Start OpenLDAP service

The init script file for OpenLDAP is slapd.

# service slapd start
Starting slapd (via systemctl):                            [  OK  ]

Check status of OpenLDAP service:

# service slapd status
slapd.service - LSB: starts and stopd OpenLDAP server daemon
          Loaded: loaded (/etc/rc.d/init.d/slapd)
          Active: active (running) since Thu, 08 Mar 2012 13:42:27 +0800; 1min 0s ago
         Process: 1669 ExecStop=/etc/rc.d/init.d/slapd stop (code=exited, status=0/SUCCESS)
         Process: 1692 ExecStart=/etc/rc.d/init.d/slapd start (code=exited, status=0/SUCCESS)
        Main PID: 1722 (slapd)
          CGroup: name=systemd:/system/slapd.service
                  â 1722 /usr/sbin/slapd -h  ldap:/// ldapi:/// -u ldap

Configuration - cn=config

OpenLDAP use statically configured slapd.conf prior to version 2.3.  A new run-time configuration and zero down-time configuration, cn=config introduced since version 2.3.  A most notable cn=config is the configuration parameters may entered via ldapmodify or LDIF files.  The changes has immediate effect without restart slapd service.

Configuration - Add cn=config admin password

The cn=config in a fresh OpenLDAP installation doesn’t has admin password.  Administrator may not change OpenLDAP configuration parameters without admin password.  The first task after a fresh OpenLDAP installation is add cn=config admin password.

Generate slapd SSHA password:

# slappasswd -h {SSHA}
New password:
Re-enter new password:
{SSHA}m8MhPiaG0TWmP/Ro2VcRopBqTbTm1UX1

We will use the new generated password “{SSHA}m8MhPiaG0TWmP/Ro2VcRopBqTbTm1UX1 ” in next step.

Next, determine the DN  (Distinguished Name) for the database that contains the RootDN password.  The RootPW (root password) may not present in fresh installation:

# ldapsearch -LLL -Y EXTERNAL -H ldapi:/// -b olcDatabase={0}config,cn=config dn olcRootDN olcRootPW
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
dn: olcDatabase={0}config,cn=config
olcRootDN: cn=config

Next, add olcRootPW to olcDatabase={0}config,cn=config using shell-accessible tool ldapmodify with LDIF text:

# ldapmodify -Y EXTERNAL -H ldapi:///
SASL/EXTERNAL authentication started
SASL username: gidNumber=0+uidNumber=0,cn=peercred,cn=external,cn=auth
SASL SSF: 0
dn: olcDatabase={0}config,cn=config
add: olcRootPW
olcRootPW: {SSHA}m8MhPiaG0TWmP/Ro2VcRopBqTbTm1UX1

modifying entry "olcDatabase={0}config,cn=config"

In the above example, as soon as empty line received, the LDIF text will be processed immediately.  Press Ctrl-D to end ldapmodify shell when done.

GUI tools for LDAP directory

Apache Directory Studio is a GUI LDAP browser and client to manage LDAP directory.  It save lot of time and effort to use ldapmodify managing the directory entries.

Manage cn=config using Apache Directory Studio

Create LDAP connection in the studio:

Enter authentication information for the connection:

Enter cn=config to BaseDN text box:

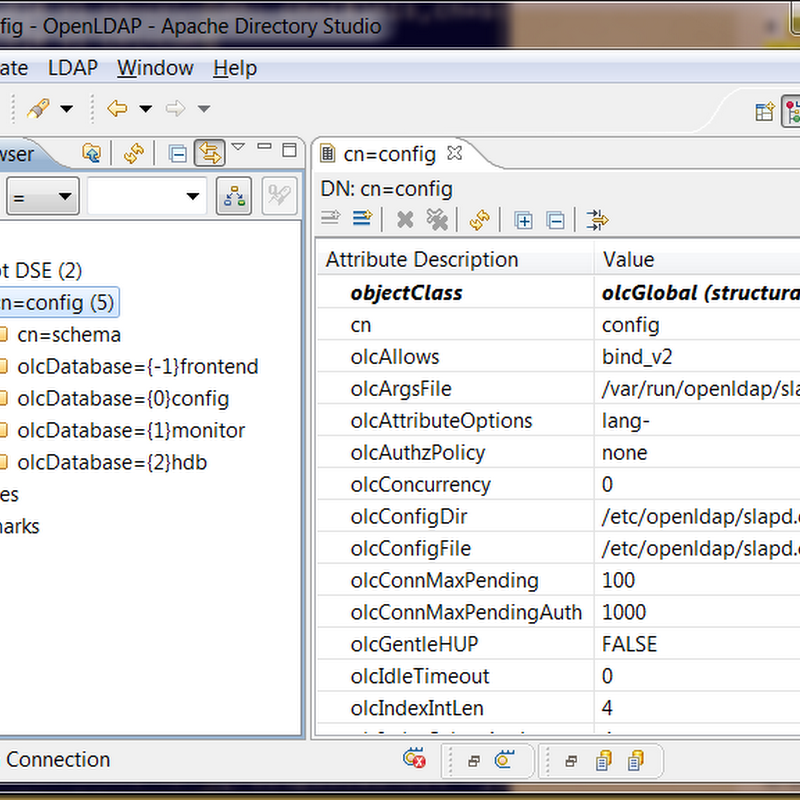

Commit the changes by pressing OK button.  You may open the connection and start browsing the OpenLDAP configuration parameters.

Configuration: olcDatabase

You may start configure a new LDAP directory once OpenLDAP service is up and running.  The olcSuffix parameter let you specify a unique identifier for the directory.  olcRootDN specify the supervisor for the directory.

A olcRootPW may be added to secure the directory from anonymous changes.

Browse OpenLDAP directory as Manager

Define a new OpenLDAP connection using RootDN to access a fresh LDAP directory:

Connect to the LDAP directory shows an empty directory:

Add an initial entry to LDAP directory

Use “New Context Entry…” to create an initial entry to LDAP directory:

First, define a new object using dcObject and organizationUnit classes:

Next, enter a DN for the object:

Supply a ou value to identify the entry:

The following diagram shows the newly created object:

Flooding the LDAP directory

You may start enter the LDAP objects to the directory:
