Introduction
It is straight forward to install a fresh new Windows 7 instance on iSCSI target. However, there few tricks to migrate a Windows 7 instance to iSCSI target. Migrating an existing Windows 7 instance is a time consuming process especially for large partition size. Doing it right will save lot of time.
Prepare Windows 7 disk volume for migration

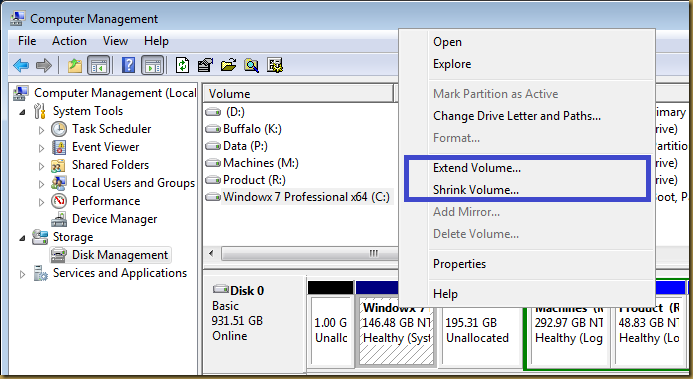

If a Windows 7 instance has larger partition size, e.g.: Few hundred Giga bytes or Tera bytes, migrate this instance will spend lot of time transfer Windows 7 instance to iSCSI target. Before start migrate the instance, try shrink or extend the volume size suitable for usage in near future. Use Extend Volume… and Shrink Volume… function in Disk Management to perform the task:
Update Windows 7 network driver
The iSCSI operation rely heavily on the network device. Update the network driver to latest version is not always necessary but it is advisable to do so. Some booting process of iSCSI operation may slow down due to network driver’s problem.
Disable LightWeight Filter (LWF)
Disable LightWeight Filter (LWF) is a crucial step to make sure the migration work. This step must perform or else the SAN boot will fail in later stage.
A Microsoft knowledge article KB967042: Windows may fail to boot from an iSCSI drive if networking hardware is changed describe the cause and solution for the problem.
There is a quick solution to disable LWF by changing some registry setting:
- Identify the description of Network Adapter use for iSCSI network operation in later stage:
- Start RegEdit in administrator account.
- Open HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\ Class\{4D36E972-E325-11CE-BFC1-08002BE10318}. There are many subkeys underneath, find and open the subkey where the DriverDesc match the NIC’s description. e.g.: 0013
- Open the subkey Linkage and edit FilterList value:
- There are usually two lines in FilterList:
{0B47BB2C-86FB-4699-8906-E08465757D92}-{B5F4D659-7DAA-4565-8E41-BE220ED60542}-0000
{0B47BB2C-86FB-4699-8906-E08465757D92}-{B70D6460-3635-4D42-B866-B8AB1A24454C}-0000
- Delete the line that refer to LWF driver’s UUID: {B70D6460-3635-4D42-B866-B8AB1A24454C}. In this case:
{0B47BB2C-86FB-4699-8906-E08465757D92}-{B5F4D659-7DAA-4565-8E41-BE220ED60542}-0000
{0B47BB2C-86FB-4699-8906-E08465757D92}-{B70D6460-3635-4D42-B866-B8AB1A24454C}-0000
Migrate Windows 7 disk image to iSCSI target
Next, the Windows 7 is ready to image and transfer to iSCSI target. Boot into Linux and use command line utilities like fdisk and dd to image the Windows 7 partition.
First, decide the partition size:
# fdisk -lu /dev/sdb
Disk /dev/sdb: 1000.2 GB, 1000204886016 bytes
255 heads, 63 sectors/track, 121601 cylinders, total 1953525168 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0xdf70df70
Device Boot Start End Blocks Id System
/dev/sdb1 * 2099200 309299199 153600000 7 HPFS/NTFS
/dev/sdb2 718899200 1953521663 617311232 f W95 Ext'd (LBA)
/dev/sdb5 718901248 1333301247 307200000 7 HPFS/NTFS
/dev/sdb6 1333303296 1435703295 51200000 7 HPFS/NTFS
/dev/sdb7 1435705344 1953521663 258908160 7 HPFS/NTFS
In above example, the windows 7 partition is /dev/sdb1. The sector start from 209920 and end at 309299199. However, sector from 1 to 2099199 is necessary too as it contain the MBR code to make Windows 7 boots properly. The total size to of Windows 7 image should start from sector 1 to 309299199. Each sector has size 512 bytes.
# dd if=/dev/sdb of=win7.img bs=512 count=309299199
The block size of 512 bytes of above example may be slow to image the partition. Try switch the bs and count value may accelerate the imaging process:
# dd if=/dev/sdb of=win7.img bs=309299199 count=512
Transfer win7.img to iSCSI target and perform necessary setup. The Windows 7 instance has successfully migrate to iSCSI target. The iSCSI target is ready to SAN boot now.
Boot iSCSI target
Once the iSCSI target is setup, use iPXE or gPXE to SAN boot the iSCSI target:
dhcp net0
sanboot iscsi:nas.example.com::::iqn.example.com:windows-7
Reference
- Diskless Windows 7 iSCSI boot from OpenSolaris 2009.06 ZFS Server. URL: http://blog.zorinaq.com/?e=41
- Transferring the disk image to a SAN target. URL: http://www.etherboot.org/wiki/sanboot/transfer
